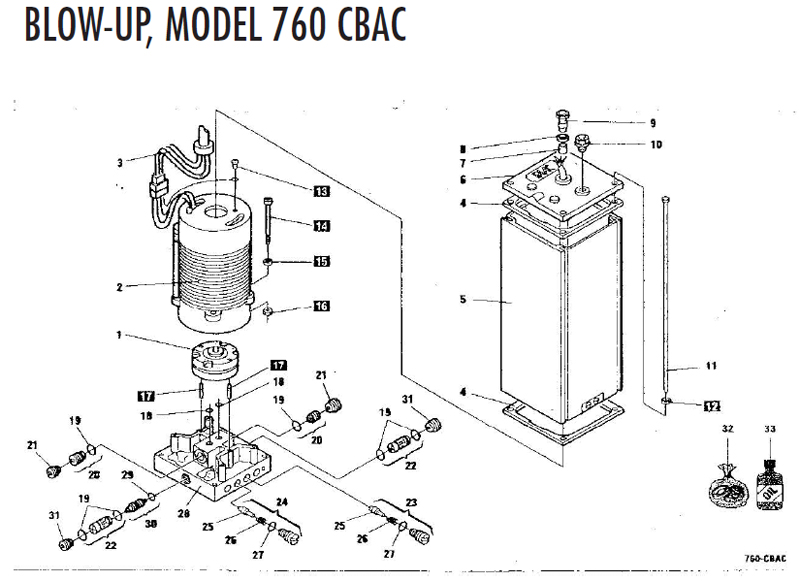

| FAAC Gate Operators 760 - Scroll Down to View Exploded Parts View , Parts list Punp Click on the image to enlarge |
| FAAC Replacement Parts for your FAAC Operators - We Offer FAAC Factory Direct replacement parts and New Products for FAAC Systems |
|
| * 7109235 Included in Kit * 77000415 220V Motor 16 uf Capacitor * 7700205 220V Motor 8 uf Capacitor |
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| POS PART NO. DESCRIPTION QTY 1 7276005 Load Bearing Box Cover 2 7309095 Splined Collar 3 7093225 Dust Cover 4 7095075 Seal (Top/Inner) 5 7090765 Bushing (Upper) 6 3907535 Bushing (Upper) & Seal Combo 7 7192475 Pinion (Shaft) 8 3907525 Bushing (Lower) 9 7280885 Mounting Bar 10 7099575 Gasket (Drive to Load Bearing Box) 11 N/A Rack Cover 12 N/A Galvanized Screw 13 490098 Load Bearing Box (Complete) 14 2070 Stainless Steel Screw (6 x 10mm) |
| Item | Description | Part Number | Price |
| 1 | Lobe Pump75 lt. | 3204435 | Our Price: $124.50 |
| 2** | 115v 1400 RPM Motor | 77000425 | Our Price: $131.25 |
| 3 | Electric Power Cord | 7514125 | Our Price: $38.25 |
| 4 | Flange Gasket | 7099315 | Our Price: $5.00 |
| 5 | Body (Pump Housing) | 7450115 | Our Price: $48.00 |
| 6* | Flange (Upper) | 7276025 | Our Price: $25.00 |
| 7* | Fiber Washer | 2581 | |
| 8* | Strain Relief Brass Washer | 7039305 | Our Price: $3.00 |
| 9* | Strain Relief Nut | 7109235 | Our Price: $18.00 |
| 10 | Filler Cap | N/A | |
| 11* | Tie Rod Pump (760) | 7230385 | Our Price: $9.00 |
| 12 | Star Washer Stainless Steel | N/A | |
| 13 | Vent Screw (4mm x 8mm) | 2274 | |
| 14 | Motor Bolt (4mm x 50mm) | 2365 | |
| 15 | Lock Washer (4mm) | 2366 | |
| 16 | Hex Nut (4mm) | 2367 | |
| 17 | Pump Pin (4mm x 28mm) | N/A | |
| 18 | O-Ring | 7090010015 | Our Price: $2.00 |
| 19 | O-Ring | N/A | |
| 20 | Inlet Valve | 4404065 | Our Price: $5.00 |
| 21 | Valve Retainer | N/A | |
| 22 | Lock Valve | 4404085 | Our Price: $8.00 |
| 23 | Green By-Pass Cap | 4180395 | |
| 24 | Red By-Pass Cap | 4180395 | |
| 25 | By-Pass Cap | 4180395 | |
| 26 | By-Pass Spring | 4180395 | Our Price: $8.00 |
| 27 | O-Ring (By-Pass Cap) | N/A | |
| 28 | Valve Body | 4994075 | Our Price: $124.50 |
| 29 | O-Ring (Shuttle Piston) | N/A | |
| 30 | Shuttle Piston | 4180285 | Our Price: $16.00 |
| 31 | Valve Retainer (Brass) | 7049005 | Our Price: $4.00 |
| 32 | Seal Kit | 2170* | Our Price: $57.75 |
| 33 | Monolec Oil (Qt.) | 6115 Qt+* | Our Price: $26.00 |
