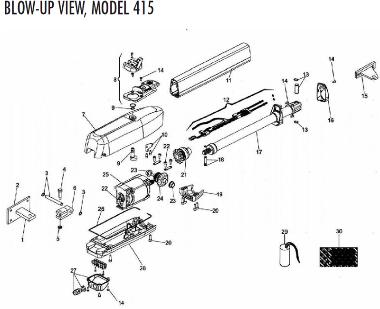

| FAAC Gate Operators 415 - Scroll Down to View Exploded Parts View & Parts list for 400 opener --- Click on image to enlarge |
| FAAC Replacement Parts for your FAAC Operators - We Offer FAAC Factory Direct replacement parts and New Products for FAAC Systems |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| POS PART NO. DESCRIPTION QTY 1 7220015 Rear Mounting Bracket 2 7284005 Rear Mounting Plate 3 718366 Long Pin with C Clips 4 7182075 Short Pin 5 N/A Hex Nut 6 7221115 Rear Fork 7 716148 Rear Upper Body 8 428403 Manual Release Assembly 9 60202145 Manual Release Cam 10 60202155 Manual Release Lever 11 716150 Limit Switch Protective Cover 12 490108 Limit Switch Assembly 13 718354 Front Mounting Pin with C Clips 14 N/A Self Tapping Screws 4.2 mm x 13 mm 7 |
| POS PART NO. DESCRIPTION QTY 15 728271 Front Mounting Bracket 16 711027 Limit Switch Adjusters Cover 17 490104 Cylinder 18 718367 Screw Drive Pin and C Clips 19 499399 Lower Front Cover 20 N/A Self Tapping Screw 6.3 mm x 19 mm 8 21 60202225 Gear (Piston) 22 N/A Self Tapping Screw 4.8 mm x 13 mm 10 23 60202165 Bushing 24 60202215 Gear (Motor) 25 60202205 Motor 24VDC 25 770890 Motor 115Vac 26 709324 Gasket 27 60202175 Electric Cable Cover 28 716149 Rear Body Lower Half 29 2705 25UF Capacitor 30 490106 415 Skin Pack |
| Item | Description | Part Number | Price |
| 1 | Rear Mounting Bracket | 7220015 | Our Price: $33.00  |
| 2 | Rear Mounting Plate | 7284005 | Our Price: $17.00 |
| 3 | Long Pin With C Clips | 718366 | Our Price: $15.00 |
| 4 | Short Pin | 7182075 | Our Price: $12.00 |
| 5 | Hex Nut | N/A | |
| 6 | Rear Fork | 7228015 | Our Price: $35.00 |
| 7 | Rear Upper Body | 716148 | Our Price: $48.00 |
| 8 | Manual Release Assembly | 428403 | Our Price: $47.25 |
| 9 | Snap Ring | 60202145 | Our Price: $42.00 |
| 9 | Nickel Plated Self Tapping Screw | N/A | |
| 10 | Manual Release Lever | 60202155 | Our Price: $15.00 |
| 11 | Limit Switch Protective Cover | 716150 | Our Price: $52.50 |
| 12 | Limit Switch Assembly | 490108 | Our Price: $74.25 |
| 13 | Front Mounting Pin w/ C Clips | 718354 | Our Price: $6.00 |
| 14 | Self Tapping Screws (4.2mm x 13mm) | N/A | |
| 15 | Front Mounting Bracket | 728271 | Our Price: $39.00 |
| 16 | Limit Switch Adjusters Cover | 711027 | Our Price: $15.00 |
| 17 | Cylinder | 490104 | Our Price: $87.00 |
| 18 | Screw Drive Pin and C Clips | 718367 | Our Price: $2.00 |
| 19 | Lower Front Cover | 499399 | Our Price: $21.00 |
| 20 | Self Tapping Screw (6.3mm x 19mm) | N/A | |
| 21 | Gear (Piston) | 60202225 | Our Price: $51.00 |
| 22 | Self Tapping Screw (4.8mm x 13mm) | N/A | |
| 23 | Bushing | 60202165 | Our Price: $15.00 |
| 24 | Gear (Motor) | 60202215 | Our Price: $64.50 |
| 25 | Motor 115Vac | 770890 | Our Price: $140.76 |
| 26 | Gasket | 709324 | Our Price: $15.00 |
| 27 | Electric Cable Cover | 60202175 | Our Price: $29.00 |
| 28 | Rear Body Lower Half | 716149 | Our Price: $49.50 |
| 29 | 25uf Capacitor | 2705 | Our Price: $11.00 |
| 30 | Skin Pack 415 L LS | 490106 | Our Price: $48.00 |
