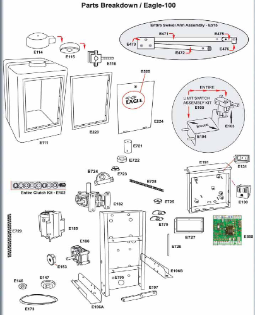

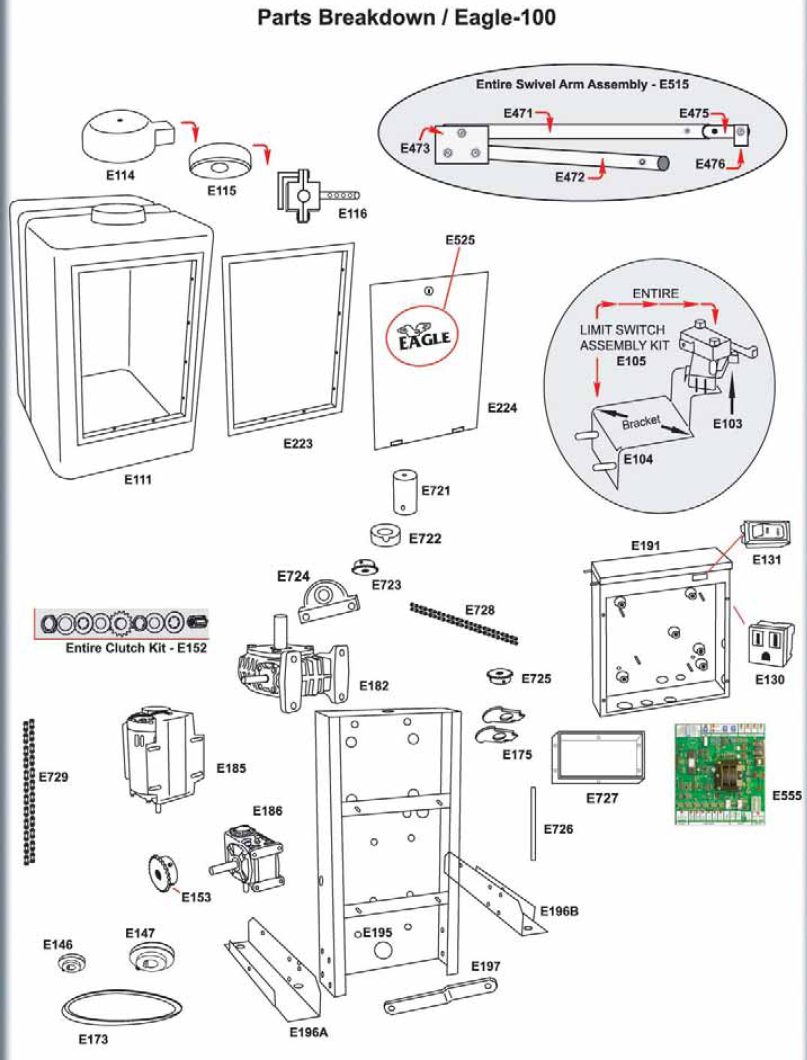

| EAGLE Gate Operator 100 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Swing Gate Operator Click Here for Replacement Parts Quote Form on all Inquiries |
| Part Description For Eagle 100 Slide Number Gate Operator E111 Operator Cover E223 Operator Cover Door Frame E224 Operator Cover Door E114 Release Cover E115 Release Cover Cap E116 Main Swing Arm E105 Limit Switch (LS) Assembly (Complete) E104 Limit Switch Bracket E103 Limit Switches E191 Control Board Box E555 Diamond Control Board E130 Electrical Outlet E131 Power Switch E195 Eagle-200 Chassis E196A Right Chassis Leg E196B Left Chassis Leg E197 Leg Bracket E185 1/2 HP Motor E148 2" Motor Pulley E182 Gear Reducer (GR) E140 (GR) Sprocket E143 (GR) Pulley E142 Clutch Kit (CK) Complete |
| Part Description For Eagle 100 Slide Number Gate Operator E701 Main Bushing E702 Metal Disk E703 Fiber Disk (Clutch) E704 Sprocket E705 Spacer E706 Fiber Disk (Clutch) E707 Metal Disk E708 Spring Washer E709 Locking Washer E710 Nut E141 Drive Chain E172 1/2HP V-Belt E160 Arm Hub E163 Shaft E175 Limit Switch Activators E176 Shaft Key E525 Plastic Eagle Logo E777 Swivel Arm Assembly (SAA) Complete E771 Large Arm E772 Small Arm E773 Arm Attachment Plate E775 Extension Arm E776 Weld Plate |
|
