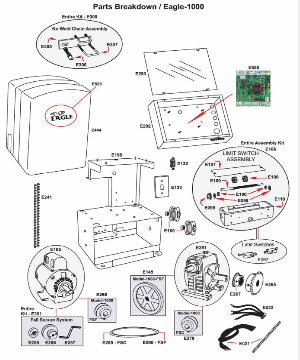

| EAGLE Gate Operator 1000 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Slide Gate Operator Click Here for Replacement Parts Quote Form on all Inquiries |
| Part Description For Eagle 1000 Slide Number Gate Operators E444 Operator Cover E293 Plastic (Control Board Box) Cover E292 Control Board Box E555 Diamond Control Board E198 Eagle-1000 Chassis E106 Limit Switch (LS) Assembly (Complete) E-107 LS) Box Cover Plate E-108 djustment Cams E-109 hreaded Shaft E-098 haft Bearings E-099 haft Sprocket E-100 Shaft Collar E-110 (LS) Box E-097 Limit Switches E185 /2 HP Motor E266 Fail-Safe Motor Pulley E301 Fail-Secure (FSC) System (Complete) E255 Motor Pulley E256 Pulley w/ Release Outlet E257 Release Crank |
| Part Description For Eagle 1000 Slide Number Gate Operators E281 Gear Reducer (GR) E145 Fail-Safe (GR) Pulley E278 Fail-Secure (GR) Pulley E267 (GR) Limit Drive Sprocket E265 (GR) Gate Drive Sprocket E241 Limit Chain E169 Idler Pulley E285 Fail-Secure V-Belt E286 Fail-Safe V-Belt E132 Electrical On/Off Switch E133 Switch / Outlet Plate E021 Motor Harness E022 Receiver Harness E525 Plastic Eagle Logo E300 No Weld Chain Assembly (Complete) E305 Chain Bracket E306 Chain Bolt w/ Nuts E307 U-Bolts |
