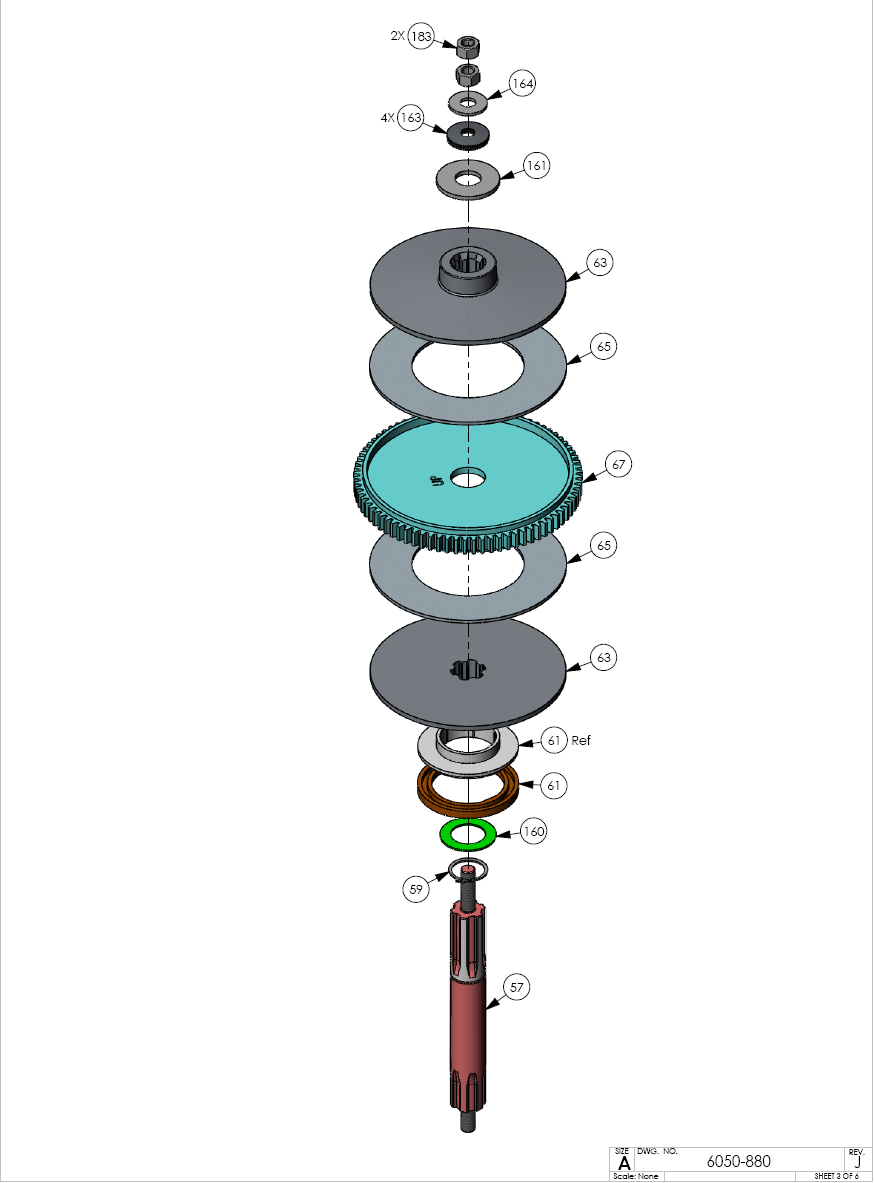

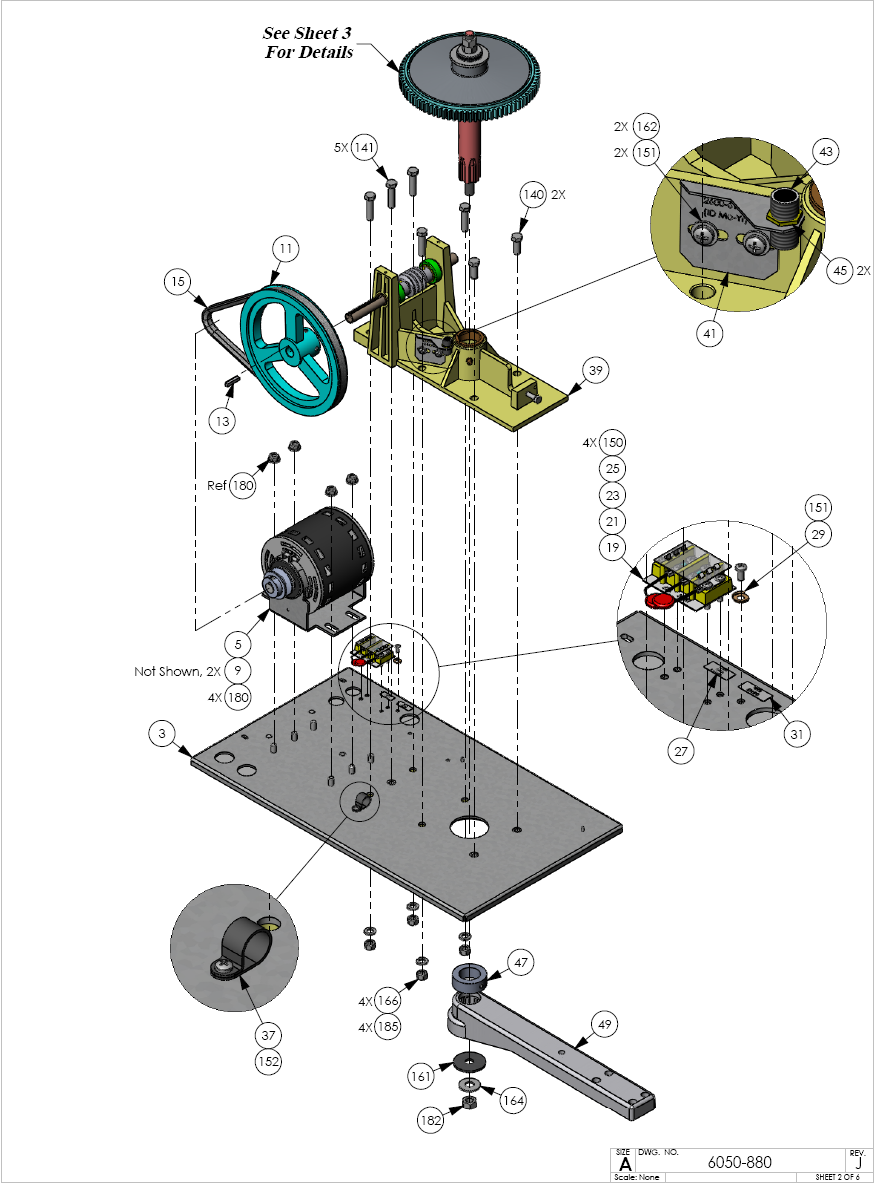

| DoorKing 6050 Gate Opener - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Swing Gate Opener 6100 Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File Doorking Parts 6050 |
| Item Part Number Description for swing Gate Opener 6100 1 6050-880 IPB-1/3 HP, Primary Gate Operators J 3 2600-643 Baseplate 605/610 No Batt Back 5 2600-126 Motor Assembly 1/2 HPl 9 1215-018 Wire Nut #71B 11 2600-567 Pulley 7" Cast Iron AC70X5/8 13 1601-019 Keyway 3/16 x 3/16 x 1 15 2600-086 Belt - 28" 19 2600-410 Marker Strip Silkscn Both Side 21 2600-414 Terminal Block-2 Position 23 3129-002 Terminal Block Cover 2 Position 25 4001-093 MOV Assembly 130VAC 27 2599-014 Decal Copper Wire Only 29 2600-439 Washer Cup - Brass 31 2599-006 Decal SUPPLY GND 37 2600-619 Wire Clp-5/8" Concord 770-1209 39 6100-040 Housing Assembly 6100 41 2600-613 Bracket Magnetic Ctr Potted 43 3004-010 Magnetic Counter Threaded 45 3004-051 Nut Panel 1/4-18 47 2600-061 Collar 2 OD x 1 1/4 ID x 5/8 L 49 2600-779 Swing Crank Arm Extended 57 2600-675 Shaft Assembly 605/610 59 2630-010 Snap Ring 1.25" 61 2600-360 Counter Wheel Mag Assembly 63 2600-680 Clutch Plate 7" 65 2801-002 Clutch Pad 7" OD605/610,6100 67 2600-323 Worm Gear 80 Tooth Delrin 71 2600-668 Bracket 605/610 PCB Support 72 2600-638 Bracket Radio 610 Battery Bkup 73 2600-533 Switch Cover Doorking Lockable 75 2600-731 Gasket Switch Cover 77 1506-071 Tone Generator Loud 79 1812-005 Switch Push Button N.O. 81 1601-041 Switch Toggle SPST 2POS 83 2599-008 Label Patent 87 2600-820 Bushing 1/2 89 2600-239 Capacitor Clamp VR6B 91 2600-234 Capacitor 30uf 370VAC 95 4502-010 PCB Gate Operator 97 4001-020 Terminal 20 Pin |
| Item Part Number Description for swing Gate Opener 6100 99 2600-830 Jumper- Ring Tongue 111 2600-721 Cover-Model 6050/6100 113 2600-732 Nameplate Plastic DKS 115 2802-040 Washer Push on Clamp 116 1897-052 Gasket, Microphone Support 117 1702-507 Cam "J" Hook 119 4001-035 Lock N16058BDxSFx2K Key 16120 121 2600-720 Crank Arm Joint Assembly Blk 123 2600-630 Joint Cover Swinger Left 125 2600-631 Joint Cover Swinger Right 127 2600-711 Bracket 3/16 x 2 x 12 131 2599-034 Label Gate Operator 133 2599-199 Label Universal 140 2615-052 Bolt Hex Head 3/8-16 x 1 141 2615-055 Bolt Hex Head 3/8-16 x 1 1/2 142 2615-008 Bolt Hex Head 1/4-20 x 1 1/2 150 2616-019 Screw Phillips Head 8-32 x 3/4 151 2616-016 Screw Phillips Head 8-32 x 1/4 152 2616-017 Screw Phillips Head 8-32 x 3/8 153 2904-002 Screw Round Head 4-40 x 3/8 154 2616-051 Screw Phillips 10-32 x 3/8 155 2616-052 Screw Phillips Head 10-32 x1/2 156 2616-001 Screw Phillips Head 6-32 x 3/8 158 2616-003 Screw Phillips Head 6-32 x 3/4 160 2620-220 Washer 1.25 x 2 x .0625 161 2620-131 Washer 1 7/8 OD x 1/2 ID 1/8 T 162 2802-003 Washer #8 SAE 163 2600-183 Washer Bellville 1.5 OD x .5 ID 164 2620-021 Washer 1/2 SAE 166 2620-019 Washer 3/8 SAE 170 2620-010 Washer #10 SAE 180 2902-007 Nut Keps 5/16-18 181 2620-409 Nut Hex Flange Lock 1/4-20 182 2620-320 Nut Center Lock 1/2-13 183 2620-420 Nut Hex 1/2-13 185 2620-405 Nut Hex 3/8-16 186 2620-401 Nut Hex 8-32 200 1804-031 Tie Wrap 4" 201 2600-698 Wire Set Model 6050,6100,6300 205 7082-137 Wire 5" Green Stranded 14AWG 209 2599-100 Sign Warning 210 6100-065 Manual Installation |
|
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| Item | Description | Part Number | Price |
| 1 | IPB-1/3 HP, Primary Gate Operators J | 6050-880 | |
| 3 | Baseplate 605/610 No Batt Back | 2600-643 | |
| 5 | Motor Assembly 1/2 HPl | 2600-126 | Our Price: $105.21  |
| 9 | Wire Nut #71B | 1215-018 | Our Price: $2.50 |
| 11 | Wire Nut #71B | 1215-018 | Our Price: $2.50 |
| 13 | Keyway 3/16 x 3/16 x 1 | 1601-019 | Our Price: $5.00 |
| 15 | Belt - 28" | 2600-086 | Our Price: $16.40 |
| 19 | Marker Strip Silkscn Both Side | 2600-410 | Our Price: $3.20 |
| 21 | Terminal Block-2 Position | 2600-414 | Our Price: $4.00 |
| 23 | Terminal Block Cover 2 Position | 3129-002 | Our Price: $9.36 |
| 25 | MOV Assembly 130VAC | 4001-093 | Our Price: $15.00 |
| 27 | Decal Copper Wire Only | 2599-014 | Our Price: $2.00 |
| 29 | Washer Cup - Brass | 2600-439 | Our Price: $2.50 |
| 31 | Decal SUPPLY GND | 2599-006 | Our Price: $2.00 |
| 37 | Wire Clp-5/8" Concord 770-1209 | 2600-619 | Our Price: $2.00 |
| 39 | Housing Assembly 6100 | 6100-040 | Our Price: $138.00 |
| 41 | Bracket Magnetic Ctr Potted | 2600-613 | Our Price: $6.96 |
| 43 | Magnetic Counter Threaded | 3004-010 | Our Price: $95.00 |
| 45 | Nut Panel 1/4-18 | 3004-051 | Our Price: $2.00 |
| 47 | Collar 2 OD x 1 1/4 ID x 5/8 L | 2600-061 | Our Price: $10.24 |
| 49 | Swing Crank Arm Extended | 2600-779 | Our Price: $36.56 |
| 57 | Shaft Assembly 605/610 | 2600-675 | Our Price: $62.50 |
| 59 | Snap Ring 1.25" | 2630-010 | Our Price: $2.58 |
| 61 | Counter Wheel Mag Assembly | 2600-360 | Our Price: $25.00 |
| 63 | Clutch Plate 7" | 2600-680 | Our Price: $28.98 |
| 65 | Clutch Pad 7" OD605/610,6100 | 2801-002 | Our Price: $13.40 |
| 67 | Worm Gear 80 Tooth Delrin | 2600-323 | Our Price: $68.75 |
| 71 | Bracket 605/610 PCB Support | 2600-668 | Our Price: $48.00 |
| 72 | Bracket Radio 610 Battery Bkup | 2600-638 | Our Price: $18.16 |
| 73 | Switch Cover Doorking Lockable | 2600-533 | Our Price: $40.00 |
| 75 | Gasket Switch Cover | 2600-731 | Our Price: $3.00 |
| 77 | Tone Generator Loud | 1506-071 | Our Price: $45.00 |
| 79 | Switch Push Button N.O. | 1812-005 | Our Price: $18.40 |
| 81 | Switch Toggle SPST 2POS | 1601-041 | Our Price: $15.00 |
| 83 | Label Patent | 2599-008 | Our Price: $2.24 |
| 87 | Bushing 1/2 | 2600-820 | Our Price: $1.12 |
| 89 | Capacitor Clamp VR6B | 2600-239 | Our Price: $8.00 |
| 91 | Capacitor 30uf 370VAC | 2600-234 | Our Price: $41.75 |
| 95 | PCB Gate Operator | 4502-010 | Our Price: $339.00 |
| 97 | Terminal 20 Pin | 4001-020 | Our Price: $31.90 |
| 99 | Jumper- Ring Tongue | 2600-830 | Our Price: $2.00 |
| 111 | Cover-Model 6050/6100 | 2600-721 | Our Price: $105.00 |
| 113 | Nameplate Plastic DKS | 2600-732 | Our Price: $7.50 |
| 115 | Washer Push on Clamp | 2802-040 | Our Price: $2.00 |
| 116 | Gasket, Microphone Support | 1897-052 | Our Price: $2.50 |
| 117 | Cam "J" Hook | 1702-507 | Our Price: $5.00 |
| 119 | Lock N16058BDxSFx2K Key 16120 | 4001-035 | Our Price: $16.80 |
| 121 | Crank Arm Joint Assembly Blk | 2600-720 | Our Price: $92.50 |
| 123 | Joint Cover Swinger Left | 2600-630 | Our Price: $18.00 |
| 125 | Joint Cover Swinger Right | 2600-631 | Our Price: $18.00 |
| 127 | Bracket 3/16 x 2 x 12 | 2600-711 | Our Price: $23.20 |
| 131 | Label Gate Operator | 2599-034 | Our Price: $1.68 |
| 133 | Label Universal | 2599-199 | Our Price: $2.00 |
| 140 | Bolt Hex Head 3/8-16 x 1 | 2615-052 | Our Price: $2.00 |
| 141 | Bolt Hex Head 3/8-16 x 1 1/2 | 2615-055 | Our Price: $2.00 |
| 142 | Bolt Hex Head 1/4-20 x 1 1/2 | 2615-008 | Our Price: $2.00 |
| 150 | Screw Phillips Head 8-32 x 3/4 | 2616-019 | Our Price: $2.00 |
| 151 | Screw Phillips Head 8-32 x 1/4 | 2616-016 | |
| 152 | Screw Phillips Head 8-32 x 3/8 | 2616-017 | Our Price: $2.00 |
| 153 | Screw Round Head 4-40 x 3/8 | 2904-002 | |
| 154 | Screw Phillips 10-32 x 3/8 | 2616-051 | Our Price: $2.00 |
| 155 | Screw Phillips Head 10-32 x1/2 | 2616-052 | Our Price: $2.16 |
| 156 | Screw Phillips Head 6-32 x 3/8 | 2616-001 | Our Price: $2.00 |
| 158 | Screw Phillips Head 6-32 x 3/4 | 2616-003 | Our Price: $2.00 |
| 160 | Washer 1.25 x 2 x .0625 | 2620-220 | Our Price: $3.20 |
| 161 | Washer 1 7/8 OD x 1/2 ID 1/8 T | 2620-131 | Our Price: $1.50 |
| 162 | Washer #8 SAE | 2802-003 | Our Price: $2.00 |
| 163 | Washer Bellville 1.5 OD x .5 ID | 2600-183 | Our Price: $2.00 |
| 164 | Washer 1/2 SAE | 2620-021 | Our Price: $2.00 |
| 166 | Washer 3/8 SAE | 2620-019 | Our Price: $2.00 |
| 170 | Washer #10 SAE | 2620-010 | Our Price: $1.08 |
| 180 | Nut Keps 5/16-18 | 2902-007 | |
| 181 | Nut Hex Flange Lock 1/4-20 | 2620-409 | Our Price: $2.00 |
| 182 | Nut Center Lock 1/2-13 | 2620-320 | Our Price: $2.00 |
| 183 | Nut Hex 1/2-13 | 2620-420 | Our Price: $2.00 |
| 185 | Nut Hex 3/8-16 | 2620-405 | Our Price: $2.00 |
| 186 | Nut Hex 8-32 | 2620-401 | Our Price: $2.00 |
| 200 | Tie Wrap 4" | 1804-031 | Our Price: $2.00 |
| 201 | Wire Set Model 6050,6100,6300 | 2600-698 | Our Price: $22.00 |
| 205 | Wire 5" Green Stranded 14AWG | 7082-137 | |
| 209 | Sign Warning | 2599-100 | Our Price: $8.00 |
| 210 | Manual Installation | 6100-065 |
