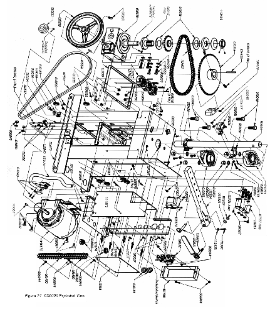

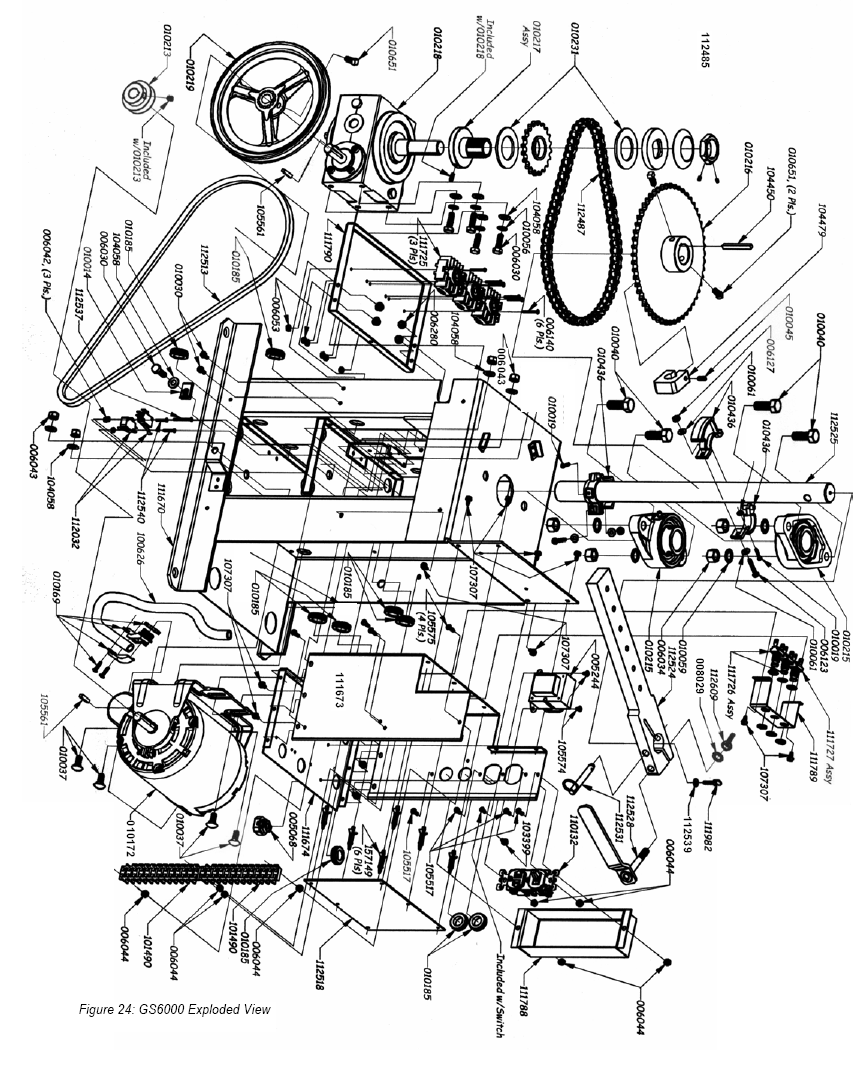

| Allstar Gate Operator GS6000 - Scroll Down to View Exploded Parts View or Illustrated Parts Breakdown For Swing Gate Operator Click Here for Replacement Parts Quote Form on all Inquiries |
| Click on Image to Enlarge, after new window opens click on image again to enlarge more or you can download PDF File ALLSTAR Parts GS6000 |
| ALLSTAR Replacement Parts for your ALLSTAR Operator - We Offer ALLSTAR Factory Direct replacement parts and New Products for ALLSTAR Systems, Gate Operators, Keypad Parts, Proximity and Multi-Tenant Access Control panels |
| Part Description GS6000 Swing Gate Operator Number 5068 CON, 3/8 FLEX Conduit, Straight, AMP 207370-1 5244 Transformer, 120V-24V, 50/60 Hz, Class 2, 40VA 6030 Screw, 5/16-18 x 1, ZI 6034 Nut, 1/2-13, Hex 6042 Nut, 4-40, Hex, Captivated Lock Washer 6043 Nut, 5/16-18, Hex, Captivated Lock Washer 6053 Nut, 6-32, Hex, Captivated Lock Washer 6044 Nut, 8-32, Hex, Captivated Lock Washer 6123 Screw, 10-24 x 1-1/4, PN PH MA 6127 Nut, 10-24, Hex, Captivated Lock Washer 6140 Screw, 6-32 x 1, RH MA 6280 Nut, 10-32, Hex, SR FL 8029 Washer, 3/8, INT TTH Lock, 10T 10014 Nut, 5/16-18, U, Tinnerman 10019 Screw, 6-32 x 3/4, PH PN MA 10030 Screw, 10-32 x 1/2, Hex SL WA 10037 Screw, 5/16-18 x 3/4, CR, ZI 10040 Screw, 1/2-13 x 1-1/4, HX 10045 Screw, 1/4-20 x 1/2, SK, Set 10056 Washer, 5/16, INT TTH Lock 10059 Washer, 1/2, INT TTH Lock 10061 Washer, #10, Flat 10169 Connector, Conduit, N, 90 Degree 10172 Motor, 1/2HP, 115V, 56, ODP, PSC, GATE 10185 Grommet, 5/8 ID, for 7/8 Hole 10213 Pulley, 2 IN V Belt, 5/8 IN BORE 10215 Bearing, PB, 1.25 x 1-11/16TB, CT IR 10216 Sprocket, 50B54, 1-1/4 Thru Bore, 1/4 Key 10217 Torque Limiter Assembly 10218 Speed Reducer, 60:1 10219 Pulley, 8”, V-Belt, 5/8 Bore 10231 Clutch Disk, Torque Limiter 10436 Actuator, Limit Cam 10651 Screw, 5/16-18 x 5/8, SQ Head, Set 100626 Conduit, Non-Metallic, 1/4 101490 Terminal Block, Barrier Type, 11 POS 103399 Screw, 10-32 x 3/8, HX SL WA, T/F, Green 104058 Washer, 5/16, Flat, SAE 104450 Key, 1/4 x 1/4 x 2L 104479 Arm Stop, Heavy Duty SWGO 105517 Screw, 8-32 x 1/2, PH RD MA |

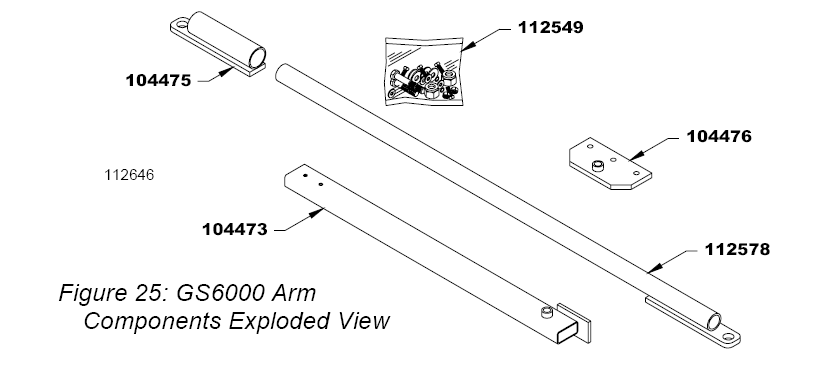

| Part Description GS6000 Swing Gate Operator Number 105561 Key, 3/16 x 3/16 x 1 105574 Screw, 8-32 x 1/4, PH PN, T/1, S/T 105575 Screw, 8-32 x 5/8, PH PN, T/1, S/T 107307 Screw, 10-24 x 3/8, HX SL WA, T/F, SS 110132 Receptacle, Duplex, Outlet/Switch, 120 VAC 111673 Control Box, GS6, HDSWG 111674 Control Box Bottom, GS6, HDSWG 111725 Socket, Octal, 11 Pin, DIN/Panel Mounting 111726 Switch, Push Button, SPST, NO, Black 111727 Switch, Push Button, SPST, NO, Red 111788 Bracket, AC Cover, High Voltage, GS6 111789 Bracket, Panel, Push Buttons, GS6 111790 Frame Pan, Loop Socket Mounting, GS6 111982 Screw, #10-32 x 3/4, Spade Head, SS 112032 Limit Switch, SPDT, Simulated Roller Lever 112484 Frame, GS6000, No Components 112487 Chain, #40, Roller, Nickel, 65P w/Master Link 112513 Belt, V, 4L440, Industrial 112518 Motor Control Board, CGO, 120V, GS6, CGA2K 112524 Arm, Crank, GS6, 1.25 Diameter Shaft 112525 Shaft, Output, GS6, Clevis Pined, 1.25 x 19.36 112528 Handle Assy, Release, 3/8-16, GS6 Crank Arm 112531 Pin, Ring Grip, 3/8 x 2.3, Quick Release 112537 Screw, 4-40 x 1-1/4, PHPM, ZI 112539 Washer, #10, Load-Distrib, 0.203 x 0.688 x 0.046 112540 Screw, 4-40 x 3/4, PHPM, ZI 112609 Wing Nut, 3/8-16 UNC-2B, S/S 157149 Standoff, PCB, 3/4IN 104473 Arm, Crank Extension, GS6, 1 x 2 x 26.5 104475 Fitting, Swing Gate Arm, 1-5/8 x 8 104476 Bracket, Swing Gate, 3 x 6 112549 Hardware Assy, Swing Arm, GS6000 112578 Arm, SWG Gate, Fixed Plate, 1.315 OD x 42L NO SHOWN 10291 Rain Seal Rubber Ring 104442 Rain Seal Plate 104779 Antenna, Radio Reciever, FC, 10 Inch 110555 Receiver, Radio, MVP-1Channel, 318 MHz, 24 VAC 111805 Turret Cover,GS6 Swing Gate Arm 112435 Access Door Assembly, Cover, GS6 112536 Manual, Install / User, GS6000 112666 Cover, Operator, Complete w/RainSeal & Access Door |
|
