HySecurity gate operators meet the most stringent governmental, industrial, corporate and residential security and reliability
requirements. They are installed at Baghdad International Airport, Fort Knox, The United Nations, numerous federal, state and
municipal sites, nearly every oil company, water treatment plants nationwide, corrections facilities, transportation facilities,
corporate campuses, power generation facilities, mini storages, gated communities and VIP residences. Call for more applications
requirements. They are installed at Baghdad International Airport, Fort Knox, The United Nations, numerous federal, state and
municipal sites, nearly every oil company, water treatment plants nationwide, corrections facilities, transportation facilities,
corporate campuses, power generation facilities, mini storages, gated communities and VIP residences. Call for more applications

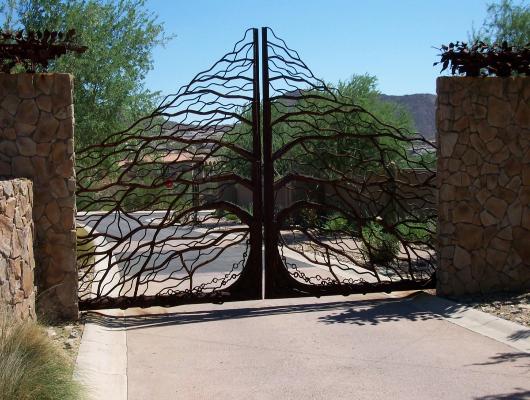

SwingSmart DC is HySecurity’s electromechanical, pad-mounted swing gate operator for residential, commercial,
and industrial applications. Ultimate reliability is maintained in the coldest, hottest, most humid, driest, saltiest, high
cycle, windy, and brutal environments.
and industrial applications. Ultimate reliability is maintained in the coldest, hottest, most humid, driest, saltiest, high
cycle, windy, and brutal environments.
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
SWINGRISER: Uniquely opens gates with an elegant lift and swing movement, raising the gate panel a
full 12" during the gate opening cycle. Lifting clears obstacles such as snow, rocks, curbs, and gradient
differences. The locking pin secures the gate as it drops into a roadway locking receptacle when the gate
gently lowers at the end of its cycle.
UPS Backup: DC battery backup for full functionality during AC power loss All Models

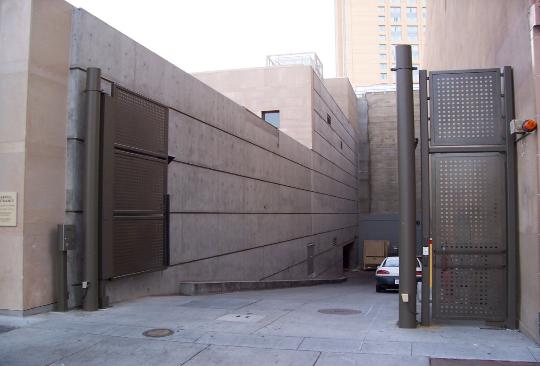

SwingRiser is a robust, ultra-reliable swing gate operator, opening high-design residential or secure
industrial gates with an elegant lift and swing movement. It offers the ultimate in elegance, utility, reliability,
security, and low maintenance.
SwingRiser raises the gate panel a full 12 inches during its gate opening cycle. The lift and swing
movement allows the gate to clear obstacles such as snow, rocks, and curbs, while also solving the
problem of road gradient diff erences.
At the end of its close cycle, the locking pin gently lowers into its ground or post mounted locking
receptacle, securely locking the gate. SwingRiser is as equally suited for a chain-link government agency
gate, as for an impressive Estate gate,
where the gate is an elegant bronze, ornamental iron, or aluminum work of art.
full 12" during the gate opening cycle. Lifting clears obstacles such as snow, rocks, curbs, and gradient
differences. The locking pin secures the gate as it drops into a roadway locking receptacle when the gate
gently lowers at the end of its cycle.
UPS Backup: DC battery backup for full functionality during AC power loss All Models
SwingRiser is a robust, ultra-reliable swing gate operator, opening high-design residential or secure
industrial gates with an elegant lift and swing movement. It offers the ultimate in elegance, utility, reliability,
security, and low maintenance.
SwingRiser raises the gate panel a full 12 inches during its gate opening cycle. The lift and swing
movement allows the gate to clear obstacles such as snow, rocks, and curbs, while also solving the
problem of road gradient diff erences.
At the end of its close cycle, the locking pin gently lowers into its ground or post mounted locking
receptacle, securely locking the gate. SwingRiser is as equally suited for a chain-link government agency
gate, as for an impressive Estate gate,
where the gate is an elegant bronze, ornamental iron, or aluminum work of art.
Standard Model: SwingSmart DC 20
Gate Length Max. Up to 20' leaf / 6.1 meters
Gate Weight Max. 1,300 lb / 590 kg
Rate of Travel 10 to 15 seconds. Variable speed, open/close set separately
Duty Cycle Continuous
Temp. Rating -13F to 158F (-25C to 70C)
Certification 500,000 cycles
Accessory Power 12 to 24 volts DC + 24 volts AC
Communication USB, RS 232, RS 485, Ethernet opt.
Power: single phase 115 volts, 50/60 Hz. std; 220 volts, 50/60 Hz. option
UL Listing I, II, III, IV
Warranty 5/7 years* (*commercial/single family residential)
Models with additional Features:
Solar SwingSmart DCS 20
Gate Length Max. Up to 20' leaf / 6.1 meters
Gate Weight Max. 1,300 lb / 590 kg
Rate of Travel 10 to 15 seconds. Variable speed, open/close set separately
Duty Cycle Continuous
Temp. Rating -13F to 158F (-25C to 70C)
Certification 500,000 cycles
Accessory Power 12 to 24 volts DC + 24 volts AC
Communication USB, RS 232, RS 485, Ethernet opt.
Power: single phase 115 volts, 50/60 Hz. std; 220 volts, 50/60 Hz. option
UL Listing I, II, III, IV
Warranty 5/7 years* (*commercial/single family residential)
Models with additional Features:
Solar SwingSmart DCS 20
Standard Model SwingRiser 14 SwingRiser 14 Twin SwingRiser 19 SwingRiser 19 Twin SwingRiser 30 SwingRiser 30 Twin
Part Number HRG 220-A ST HRG 222-A ST HRG 220-B ST HRG 222-B ST HRG 220-C ST HRG 222-C ST
Gate Weight Max. 1,000 lb 1,000 lb/leaf 1,600 lb 1,600 lb/leaf 3,000 lb 3,000 lb/leaf
Gate Width Max. 9' 9' each leaf 16' 16' each leaf 16' 16' each leaf
Rate of Travel 14 sec open/close 14 sec open/close 19 sec open/close 19 sec open/close 30 sec open/close 30 sec open/close
Duty Cycle continuous continuous continuous continuous continuous continuous
UL Listing I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV
Part Number HRG 220-A ST HRG 222-A ST HRG 220-B ST HRG 222-B ST HRG 220-C ST HRG 222-C ST
Gate Weight Max. 1,000 lb 1,000 lb/leaf 1,600 lb 1,600 lb/leaf 3,000 lb 3,000 lb/leaf
Gate Width Max. 9' 9' each leaf 16' 16' each leaf 16' 16' each leaf
Rate of Travel 14 sec open/close 14 sec open/close 19 sec open/close 19 sec open/close 30 sec open/close 30 sec open/close
Duty Cycle continuous continuous continuous continuous continuous continuous
UL Listing I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV I, II, III, IV
HySecurity was started in the 1960s using the same hydraulic technology common in the
aircraft industry. Our headquarters and manufacturing plant is located near Seattle,
Washington. HySecurity is represented worldwide by a network of distributors that is
second to none.
aircraft industry. Our headquarters and manufacturing plant is located near Seattle,
Washington. HySecurity is represented worldwide by a network of distributors that is
second to none.
|
|
|
| SwingSmart DC: DC Battery Backup SwingSmart comes standard with two 8 Amp Hour batteries to provide approximately 300 cycles of backup operation after AC power loss (depending on gate weight, length, and accessory power loads). Most other “battery backup” gate operators, simply open or close the gate one last time and die. SwingSmart DC is an uninterruptible power supply system, fully functional for hundreds of cycles after power loss. Quick and Easy Installation From the extra large conduit cutout to the chassis carrying handles for easy and accurate placement onto a concrete pad, HySecurity engineers didn’t take any shortcuts when designing SwingSmart. Installers save time with the easy adjustment linkage arm, forgiving swivel connection between arm and gate bracket, full 32 character LCD and tact buttons on Smart DC Controller for operator programming, and self-synchronizing technology. Self-Synchronizing Gates Synchronizing bi-parting gates is one of the most costly and time consuming installation procedures. With other swing gate operators, uneven wear of motors and gate hardware will de-synchronize the gates over time. SwingSmart’s self-synchronizing technology automatically synchronizes bi-parting gates in the fi rst few cycles of operation. Best of all, the gates continue to self-synchronize throughout the operator life. Vehicle Hit Protection Gate hits from impatient drivers are unavoidable. SwingSmart minimizes expensive repairs associated with gate hits by directing the damage to the least expensive operator parts, SwingSmart’s unique manual override clamp (patent pending). The result is that expensive components such as the gearbox and chassis are far less likely to sustain gate hit damage. Smart DC Controller HySecurity’s newest controller board, Smart DC Controller, has all features of HySecurity’s Smart Touch Controller with the addition of a 32 character LCD screen for easy troubleshooting and programming. The intelligent Smart DC Controller off ers 2 programmable relays, RS232, RS485/USB connection, leaf delay, lightning strike and power surge protection, and real time or backlog reporting of gate malfunction or security breach conditions. Large, Heavy Gates SwingSmart was specifi cally engineered to operate large, heavy ornamental or industrial gates eff ortlessly. SwingSmart operates gates weighing up to 1,300 lbs. or gates up to 20 feet wide per leaf. Gate capacities: 1,300 lb (590 kg) for a 12 ft. (3.65 m) gate 800 lb (363 kg) for a 16 ft. (4.87 m) gate 600 lb (272 kg) for a 20 ft. (6.1 m) gate Solar Model Some gate installations have no access to power and other companies have green initiatives mandating highly effi cient utility use. HySecurity supports these needs by off ering the solar ready SwingSmart DCS 20. Simply incorporate the appropriately sized solar panels for number of gate cycles per day, gate size/weight and sun availability, to charge SwingSmart DCS’s two 50 Amp Hour batteries for continuous, solar powered, reliable operation. Power SwingSmart DC power voltage is fi eld selectable. A voltage selector switch on the board easily converts operator from 115 volt to 230 volt power. Warranty All SwingSmart DC operators are backed by a 5-year or 500,000 cycle manufacturer’s warranty. For single-family residential installations, the warranty is extended to a 7-year manufacturer’s warranty. ADDITIONAL SPECIFICATIONS & OPTIONS • SwingSmart DC comes standard UPS battery backup, providing up to 300 cycles of operation after AC power loss. • Optional Extended Battery Backup provided by two 50 Amp Hour batteries instead of the two 8 Amp Hour standard batteries. Provides up to 1,200 cycles after AC power loss. • Solar ready model available, SwingSmart DCS 20. • Pinch protection arm design reduces the possibility of accidental injury that can be a hazard with other scissor-arm swing gate operators. • Chassis constructed with heavy duty, high strength, and corrosion resistant, zinc plated, ¼- inch steel. Large opening in base for easy conduit access. • Attractive, fade resistant, easy to remove clam shell cover provides full access to control board without having to remove the arm. Tight fi tting, key locking cover protects critical parts from vandalism. • Continuous duty rated for high cycle operation. • Field programmable speed based on gate specifi cations and site requirements. • Superior and easy integration with HySecurity hydraulic operators for tough anti-tailgating and complex gate synchronization requirements. • SwingSmart off ers advanced operator and system troubleshooting using downloadable event/fault logs to troubleshoot loops, vehicle detectors, gate systems, operator, and user errors. Integral LCD reports real-time loop, system, operator, and user errors. • Upload new versions of software to Smart DC Controller for all of the latest features. • Integrated security reporting to command and control software. • Master/slave ready. • Listed to UL 325 Usage Classes I, II, III, and IV. • 5/7 year (commercial/single-family residential) or 500,000 cycle manufacturer’s warranty. |
| SWINGRISER: SwingRiser is a robust, ultra-reliable swing gate operator, opening high-design residential or secure industrial gates with an elegant lift and swing movement. It off ers the ultimate in elegance, utility, reliability, security, and low maintenance. SwingRiser raises the gate panel a full 12 inches during its gate opening cycle. The lift and swing movement allows the gate to clear obstacles such as snow, rocks, and curbs, while also solving the problem of road gradient diff erences. At the end of its close cycle, the locking pin gently lowers into its ground or post mounted locking receptacle, securely locking the gate. SwingRiser is as equally suited for a chain-link government agency gate, as for an impressive Estate gate, where the gate is an elegant bronze, ornamental iron, or aluminum work of art. Duty cycle SwingRiser is continuous duty rated and comes certifi ed with a 200,000 cycle test. It’s designed to cycle gates hundreds of thousands of times with very low maintenance. Models There’s a SwingRiser model for nearly every site and type of gate. Gates open at speeds from 14 seconds to 30 seconds. SwingRiser lifts and swings gates panels up to 3,000 lbs. and up to 16 feet wide. They move bi-parting gates together, or can be ordered as two single leaf operators for leaf-delay. As with most HySecurity operators, SwingRiser can be ordered in a DC, uninterruptible power supply back-up confi guration. Hydraulics, Temperature Range and Chassis The fully enclosed electric motor and hydraulic pump drive a post-enclosed hydraulic cylinder, making this operator almost vandal proof. Hydraulic hoses are normally run in underground conduits. Industrial-grade hydraulics allow for severe cold and intense heat operation (from -40F to 167F; -40C to 75C). SwingRiser posts and index arm are zinc fl ame sprayed for maximum rust and corrosion resistance. If a specifi c post color is required, outer posts are ready for fi eld painting. Controls and Troubleshooting SwingRiser features the most advanced, fl exible and robust controls in the industry. The Smart Touch Controller often eliminates the high cost of add on, programmable PLCs, providing on-board integration well beyond the needs of most perimeter security applications. Programmable options include vehicle detector reverse or pause only, leaf delay, master/slave, outside loitering alert, and timer-to-close. Three user relays off er 32 programmable options, making it easy to connect SwingRiser to any external access control, obstruction protection, or security device and create complex vehicle entry validation, surveillance, and sequencing. Relays have normally-open or normally- closed connections. Smart Touch makes arduous and costly automated gate system troubleshooting a breeze. Other gate operators require time consuming, step by step access control, loop, gate edge, operator and photo eye troubleshooting to diagnose gate “failure to operate” conditions. Smart Touch off ers three exceedingly simple and formidable troubleshooting tools: a real time or downloadable fault, alert and error log that reports tailgating, gate forced open, loop failure (with HY-5A vehicle detectors) and many other gate operation abnormalities. The Smart Touch LCD screen reports faults, alerts and errors, and Smart Touch LEDs light up to show circuit status. Hours of costly and complicated access control and gate system troubleshooting are saved using HySecurity’s Smart Touch troubleshooting tools. Ordering two “Single Leaf” vs. one “Twin” Unit Two SwingRisers on the same entrance or exit can be ordered and installed as single leaf or Twin units. When users order SwingRiser in its Twin confi guration, the SwingRisers operate as one with each gate leaf moving in unison, powered by one controller, motor, and hydraulic system, effi ciently dividing the hydraulic fl uid to each post. Two single-leaf operators are required when a site requires that the gate panels operate independently of each other. Each leaf requires separate power and hydraulic controls and can be programmed to operate with leaf delay. One SwingRiser post is programmed to move before or after the other. The leaf delay confi guration is necessary when one gate leaf will close in an overlapping position to the fi rst closed leaf. This may also be necessary for specifi c add-on locking devices (although SwingRiser comes standard with its own gate locking pin and receptacle). Standard Confi guration Standard SwingRiser posts are available in 90 degree or 100 degree swing, are 81” tall (6.75 feet) with internal hydraulic cylinder and limit switches. Price also includes up to 50’ of custom cut hydraulic hose (fi eld measured by customer), index arm, and a NEMA 1R enclosure with electronic controls, electric motor, and hydraulic pump. Each outer post is zinc fl ame sprayed for ultimate rust and corrosion resistance. All hydraulics and controls are securely enclosed within the post or separate HydraSupply enclosure. Hydraulic hoses are normally enclosed in underground conduits. Custom SwingRiser post(s) can be ordered to fi t your gate size. SwingRiser posts must be mounted to a structural column or wall that will support the entire weight of the swing gate panel throughout its arc. Excessive speed, insuffi cient column support, or insuffi cient footing may cause premature post wear or other operator malfunction. Order Form HySecurity provides a SwingRiser and SwingRiser Twin Order Form that must accompnay every SwingRiser order. These order forms guide customers step by step through the critical details of the ordering process. Note: Most SwingRisers are ordered to swing in the direction of vehicular traffi c fl ow. A two leaf entrance/exit SwingRiser confi guration usually swings in on the entrance gate and swings out on the exit gate. All SwingRiser orders require a signed order form that is submitted to the factory prior to production commencement. Manual Operation SwingRiser can be manually operated by disengaging its index arm or using the hand pump included in the motor and controls NEMA-3R enclosure. Power SwingRiser models run on nearly any available worldwide voltage. Available in DC models (UPS) with uninterruptible power supply, battery back-up that continue to operate for 100 cycles after an AC power outage. Warranty SwingRiser comes with a limited 5-year manufacturer’s warranty. ADDITIONAL SPECIFICATIONS • SwingRiser opens gates up to 16’ wide and 3,000 lbs. (per leaf ). Full open cycle takes 14 – 30 seconds, depending on model. • Industrial grade mechanical and electronic components including high tensile steel, over-capacity shafts and bearings, limit cams, and hydraulic cylinders. • Cylinders and limit switches are housed in the heavy duty, fully sealed post. • Separate HydraSupply, NEMA-1R enclosure holds the Smart Touch Controller, electric motor, pump pack, and standard hand pump. • Index arm can be disengaged or hand pump in HydraSupply enclosure can be used for easy manual operation. • Posts are zinc frame sprayed for rust and corrosion resistance; the outer posts may be fi eld painted. SwingRiser also comes with support post brackets. • Continuous duty rated (200,000 cycle certifi cation). • Eff ortless integration with HySecurity StrongArm or SlideDriver for tough anti- tailgating operation. • Combination StrongArm, SlideDriver, SwingRiser, and HydraLift users benefi t from common hydraulic and electrical components and software, reducing maintenance costs, avoiding excessive parts inventory and eliminating complex, multiple-brand troubleshooting. Facilities personnel need to know only one simple operating system. • Superior operator and system troubleshooting using a downloadable event/fault log to troubleshoot loops, and vehicle detectors, as well as gate system, operator, and user issues. On board LCD reports real-time loop, system, operator,and user errors. Board LEDs show circuit status. • Programmable Smart Touch Controller communicates gate status and warnings to command and control station for immediate measured security response. • Security integrators or end-users choose from numerous programmable options including master slave, antitailgating, leaf delay, and timer to close functions. • Three user relays off er 26 programmable options, making it easy to connect SwingRiser to any external access control, obstruction protection, or security device, and create complex vehicle entry validation, surveillance, and sequencing without the addition of costly, custom PLCs. Relays have optional normally-open or normally- closed connections. • Integrated security reporting to command and control software. • Uploading new software to fl ash memory updates operator with latest features. • Available in nearly all domestic and international singlephase and three-phase voltages. • Industrial-grade hydraulics certifi ed to -40F to 167F (-40C to 75C ) temperatures from bitter permafrost to broiling desert conditions. • Listed to UL usage class I, II, III, and IV. |
