HySecurity gate operators meet the most stringent governmental, industrial, corporate and residential security and reliability
requirements. They are installed at Baghdad International Airport, Fort Knox, The United Nations, numerous federal, state and
municipal sites, nearly every oil company, water treatment plants nationwide, corrections facilities, transportation facilities,
corporate campuses, power generation facilities, mini storages, gated communities and VIP residences. Call for more applications
requirements. They are installed at Baghdad International Airport, Fort Knox, The United Nations, numerous federal, state and
municipal sites, nearly every oil company, water treatment plants nationwide, corrections facilities, transportation facilities,
corporate campuses, power generation facilities, mini storages, gated communities and VIP residences. Call for more applications

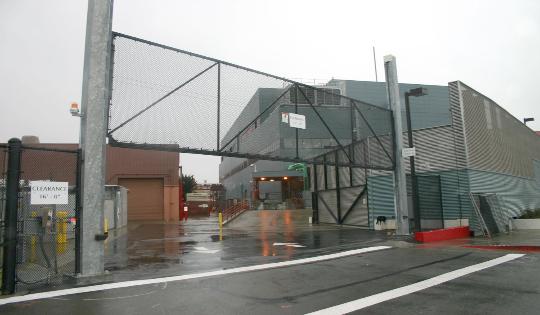

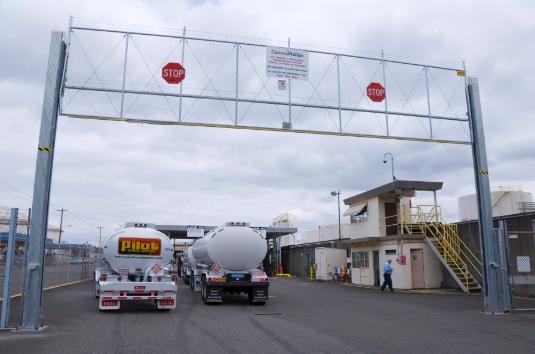

HydraLift, HySecurity’s industrial, hydraulic vertical-lift gate operator, is often chosen for multi-lane traffi c control applications because it securely opens a
wide area very quickly. The HydraLift is also used where space constraints restrict the use of slide or swing gates, on applications requiring maximum
security, or when seeking a low maintenance option for an overhead door system. HydraLift eliminates the need for expensive cantilever gates.
wide area very quickly. The HydraLift is also used where space constraints restrict the use of slide or swing gates, on applications requiring maximum
security, or when seeking a low maintenance option for an overhead door system. HydraLift eliminates the need for expensive cantilever gates.
Avilable in a variety of Models: Click on the link for specific model.
HydraLift 10 Vertical Lift, 1,000 lb. gate, 12” per sec.
HydraLift 10 UPS Vertical Lift, UPS backup, 1,000 lb. gate, 12” per sec
HydraLift 10F Vertical Lift, Fast, 1,000 lb. gate, 24” per sec
HydraLift 10F UPS Vertical Lift, Fast, UPS backup, 1,000 lb. gate, 24” per sec
HydraLift 20 Vertical Lift, 2,000 lb. gate, 12” per sec.
HydraLift 20 UPS Vertical Lift, UPS backup, 2,000 lb. gate, 12” per sec
HydraLift 20F Vertical Lift, Fast, 2,000 lb. gate, 24” per sec.
HydraLift 20F UPS Vertical Lift, Fast, UPS back-up, 2,000 lb. gate, 24” per sec Duty
HydraLift 10 Vertical Lift, 1,000 lb. gate, 12” per sec.
HydraLift 10 UPS Vertical Lift, UPS backup, 1,000 lb. gate, 12” per sec
HydraLift 10F Vertical Lift, Fast, 1,000 lb. gate, 24” per sec
HydraLift 10F UPS Vertical Lift, Fast, UPS backup, 1,000 lb. gate, 24” per sec
HydraLift 20 Vertical Lift, 2,000 lb. gate, 12” per sec.
HydraLift 20 UPS Vertical Lift, UPS backup, 2,000 lb. gate, 12” per sec
HydraLift 20F Vertical Lift, Fast, 2,000 lb. gate, 24” per sec.
HydraLift 20F UPS Vertical Lift, Fast, UPS back-up, 2,000 lb. gate, 24” per sec Duty
Cycle
Standard, AC HydraLift models are rated continuous duty and cycles gates eff ectively in the highest cycle
applications. It comes with a 200,000 cycle certifi cation. Often installed on transit facilities, truck freight depots,
heavy equipment airport access sites, and industrial, multi-lane freight yards. HydraLift is also installed at the
entrances of high end apartment and condominium complexes as well as skyscraper parking garages because of
the signifi cantly reduced maintenance and ongoing costs which are common to traditional overhead door systems.
Industrial Grade Components
HydraLift is designed with industrial grade components, insuring decades of low maintenance, high reliability
functionality.
Standard, AC HydraLift models are rated continuous duty and cycles gates eff ectively in the highest cycle
applications. It comes with a 200,000 cycle certifi cation. Often installed on transit facilities, truck freight depots,
heavy equipment airport access sites, and industrial, multi-lane freight yards. HydraLift is also installed at the
entrances of high end apartment and condominium complexes as well as skyscraper parking garages because of
the signifi cantly reduced maintenance and ongoing costs which are common to traditional overhead door systems.
Industrial Grade Components
HydraLift is designed with industrial grade components, insuring decades of low maintenance, high reliability
functionality.
Hydraulic barrier arm operator meets the demanding reliability
requirements of corporate, industrial and government users.
Barrier arm length to 36' satisy requirements for specialty
applications such as airport runways and multiple
requirements of corporate, industrial and government users.
Barrier arm length to 36' satisy requirements for specialty
applications such as airport runways and multiple
Standard Model StrongArm 14F StrongArm 20 StrongArm 28 StrongArm 36
Part Number HTG 320-2 ST HTG 320-3 ST HTG 320-6 ST HTG 320-8 ST
Arm Length Max. 14' 20' 28' 36'
Rate of Travel 2 sec to open 3 sec to open 5 sec to open 8 sec to open
3 sec to close 4 sec to close 6 sec to close 8 sec to close
Duty Cycle 2,000/day 2,000 /day 2,000 /day 2,000 /day
Arm Design Side mount Side Or Center Center Center
yoke mount yoke mount yoke mount yoke mount
Arm Material Aluminum Aluminum Aluminum Aluminum
Fiberglass Fiberglass Fiberglass Fiberglass
Wood Wood (to 14')
UL Listing I, II, III, IV I, II, III, IV III, IV III, IV
All Models Features: UPS Backup: DC battery backup or full functionality during AC power loss
Part Number HTG 320-2 ST HTG 320-3 ST HTG 320-6 ST HTG 320-8 ST
Arm Length Max. 14' 20' 28' 36'
Rate of Travel 2 sec to open 3 sec to open 5 sec to open 8 sec to open
3 sec to close 4 sec to close 6 sec to close 8 sec to close
Duty Cycle 2,000/day 2,000 /day 2,000 /day 2,000 /day
Arm Design Side mount Side Or Center Center Center
yoke mount yoke mount yoke mount yoke mount
Arm Material Aluminum Aluminum Aluminum Aluminum
Fiberglass Fiberglass Fiberglass Fiberglass
Wood Wood (to 14')
UL Listing I, II, III, IV I, II, III, IV III, IV III, IV
All Models Features: UPS Backup: DC battery backup or full functionality during AC power loss
HySecurity was started in the 1960s using the same hydraulic technology common in the
aircraft industry. Our headquarters and manufacturing plant is located near Seattle,
Washington. HySecurity is represented worldwide by a network of distributors that is
second to none.
aircraft industry. Our headquarters and manufacturing plant is located near Seattle,
Washington. HySecurity is represented worldwide by a network of distributors that is
second to none.
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
|
| StrongArm is HySecurity’s multi-use, hydraulic barrier arm gate operator. It is designed for ultimate performance, reliability, durability, and low maintenance. This operator is best suited for sites requiring long and heavy arms (up to 36 feet), high reliability, synchronization with other HySecurity operators, spanning airport runways, or controlling traffi c across wide openings. StrongArm is often found on corporate campuses, Department of Transportation applications, government facility parking lots, and multi-family residences. StrongArm easily synchronizes with every HySecurity operator for highly eff ective anti-tailgating measures. Industrial Grade Components StrongArm solves the problems common to most barrier arm operators: high maintenance gearboxes, sprockets, springs, complex mechanical parts, and commercial grade or less components. All of HySecurity’s electronic controls and mechanical/hydraulic components meet higher quality industrial standards. Electronics are protected by extremely high surge- suppression (in case of lightning strike) and off er the ultimate in end-user-programmable functionality with an ultra-low failure rate. With few moving parts, StrongArm is designed and engineered for the longest, low maintenance, high performance lifetime. Duty Cycle StrongArm is certifi ed with a 1,000,000 cycle test and is specifi ed to run up to 2,000 cycles per day. StrongArms last for generations and require very little maintenance. Hydraulics and Chassis StrongArm operates using an electric motor driving a hydraulic pump and cylinder. It has few moving parts. Most parts are bathed in hydraulic fl uid and require no periodic lubrication. StrongArm’s chassis is uni-body constructed with heavy-duty, 10 gauge welded steel that yields a very rigid, secure housing, which is protected with catalyzed primer and polyurethane enamel paint for a resilient, attractive fi nish. The galvanized sheet metal cover is secured by a keyed, T-lock for extra security and vandal resistance. Models StrongArms are available with a variety of barrier arm lengths, barrier arm types and cycle speeds. They can move up to 36 foot arms, come in side or yoke mounts, are manufactured with wood, aluminum, fi berglass steel, or aluminum/fi berglass combinations. StrongArm cycle times range from 2 seconds to 8 seconds to open, depending on arm size. Controls and Troubleshooting StrongArm features the most advanced, fl exible and robust controls in the industry. The Smart Touch Controller often eliminates the high cost of add on, programmable logic controllers (PLCs), providing on-board integration for even the most complex perimeter security applications. Programmable options include vehicle detector reverse or pause only, bi-directional traffic (entrance and exit traffi c managed by one StrongArm), hold open for two valid commands to open, master/slave, and timer-to- close. Three user relays off er 26 programmable options, making it easy to connect StrongArm to any external access control, obstruction protection, or security device and create complex vehicle entry validation, surveillance, and sequencing. Relays have normally-open or normally-closed connections. ADDITIONAL SPECIFICATIONS • Various arm length combinations (10-feet to 36-feet) open between 2 and 8 seconds. See model descriptions for details. • Available in two mounting styles depending on model: side or center yoke; and fi ve arm options: wood, aluminum, fi berglass, steel, or aluminum/fi berglass. • Industrial grade mechanical and electronic components, including high tensile steel, over- capacity shafts and bearings, limit cams, and hydraulic cylinders. • Rigid 10 gauge sheet metal chassis and 14 gauge sheet metal cover is protected with a polyurethane enamel fi nish over catalyzed epoxy primer yielding an enduring, attractive appearance. Chassis tested to withstand a 1,000-hour salt spray. • Rated at 2,000 cycles/day • Eff ortless integration with HySecurity SlideDriver and SwingRiser for tough anti-tailgating operation. |
| HydraLift Barrier Gate Opener: Cycle Standard, AC HydraLift models are rated continuous duty and cycles gates eff ectively in the highest cycle applications. It comes with a 200,000 cycle certifi cation. Often installed on transit facilities, truck freight depots, heavy equipment airport access sites, and industrial, multi- lane freight yards. HydraLift is also installed at the entrances of high end apartment and condominium complexes as well as skyscraper parking garages because of the signifi cantly reduced maintenance and ongoing costs which are common to traditional overhead door systems. Industrial Grade Components HydraLift is designed with industrial grade components, insuring decades of low maintenance, high reliability functionality. Standard Confi guration HydraLift comes with two hot dipped galvanized vertical posts, each containing a hydraulic motor that turns a sprocket and chain, raising and lowering a counterbalanced gate panel. Each post is anchored to a welded anchor bolt cage, which is mounted underground and secured with a concrete footing. The HydraSupply consists of two hydraulic motors connected in series to a hydraulic pump and motor assembly that is housed in a NEMA-1R enclosure (which must be mounted within 75’ of posts). Price includes 150 feet of hydraulic hose, customer measured, and cut to length by HySecurity for your specifi c application. The motor is controlled by HySecurity’s fl exible and powerful, programmable Smart Touch Controller, also located in the separate enclosure. HydraLift comes with two standard 24-foot posts, creating an opening 16-feet tall when used with an 8- foot tall gate panel. The gate panel is not sold by HySecurity, though many national and regional gate manufacturers build gates to HydraLift specifi cations. HydraLift posts can be ordered in custom heights to fi t your traffi c lane, gate and clearance requirements. Models HydraLift lifts gates weighing up to 2,000 lbs. (80 foot max. gate length) at 12 or 24 inches per second. Hydraulics and Enclosure HydraLift’s industrial-grade hydraulics allow for severe cold and intense heat operation (from -40F to 167F; -40C to 75C). All moving parts are housed in its vertical posts and NEMA-3R control enclosure. Hydraulic hoses are normally installed in underground conduits. Controls and Troubleshooting HydraLift features the most advanced, fl exible and robust controls in the industry. The Smart Touch Controller often eliminates the high cost of add on, programmable logic controllers (PLCs), providing onboard integration for even the most cmoplex perimeter security applications. Programmable options include vehicle detector reverse or pause only, outside loitering alert, synchronization with barrier arms or peripheral devices, and timer-to- close. Three user relays off er 32 programmable options, making it easy to connect HydraLift to any external access control, obstruction protection, or security device. It also makes it easy to create complex vehicle entry validation, surveillance, and sequencing. Relays have normally- open or normally-closed connections. Smart Touch virtually eliminates arduous and costly automated gate system troubleshooting. Other gate operators require time consuming, step by step access control, loop, gate edge, operator and photo eye troubleshooting to diagnose gate “failure to operate” conditions. Smart Touch off ers three exceedingly simple and formidable troubleshooting tools: a real time or downloadable fault, alert and error log that reports tailgating, gate forced open, loop failure (with HY-5A vehicle detectors), and many other gate operation abnormalities. The Smart Touch LCD screen reports faults, alerts and errors, and Smart Touch LEDs light up to show circuit status. Hours of costly and complicated access control and gate system troubleshooting are saved using HydraLift’s Smart Touch troubleshooting tools. Power HydraLift models run on most available worldwide voltages. HydraLift is also available in an uninterruptible power supply (UPS) DC model which continues to operate for 150 cycles during an AC power outage. Manual Operation HydraLift’s gate is counterweighted for easy manual operation. Simply pull and turn its hydraulic bypass valve and push the gate up. Warranty HydraLift comes with a limited 5-year manufacturer’s warranty. ADDITIONAL SPECIFICATIONS • HydraLift requires only the space for its vertical posts and a separate HydraSupply containing electronics and motor/pump enclosure. • Combination HydraLift, StrongArm, SlideDriver or SwingRiser users benefit from cross platform part and functional components and software. This reduces maintenance costs, avoids excessive parts inventory and eliminates complex, multiple- brand troubleshooting. Facilities personnel need to know only one simple operating system. • HydraLift also off ers the benefi t of out-of-the-box security. It is locked by gravity and hydraulics, without added costly, complicated, and failure-prone external locking mechanisms. Moving parts and hydraulics are enclosed out of sight and not subject to vandalism or destruction. • Very low maintenance. HydraLift is exceedingly easy to maintain and outlasts other overhead doors by decades. • HydraLift eliminates the need for expensive cantilever gates. • Listed to UL usage class I, II, III and IV. |
| For more information see charts below StronArm: Manual HydraLift: Manual |
