| L. A. Ornamental & Rack Corp 3708 NW 82nd Street Miami, Florida 33147 Office: 305-696-0419 Fax: 305-696-0461 |
| TPU Board Power Master SS12TPU Falcon Control Main Circuit Electronic Board: Ciruit Board Used On Models: CSWC Swing Gate Operators, BSG Slide Gate Openers, SG Sliding Gate Openers, SGI Sliding Gate Operators This Falcon Main Control Electronic Circuit Board was used in Power Master Gate Openers. The model # of the boards is SS12TPU which actually re-places several of the SSTPU series-- and now has been replace by SSTPU12. Unless your board matches exactly e-mail us for verification prior to ordering |

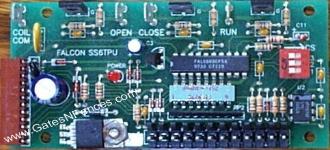

| TPU Board - Power Master SS6TPU | Falcon Circuit Gate Control Electronic Main Board: Ciruit Board Used On Models: CSWC Swing Gate Operators, BSG Slide Gate Openers, SG Sliding Gate Openers, SGI Sliding Gate Operators This Falcon Main Control Electronic Circuit Board are use in Power Master Gate Operators. This Board Has Been Re-place By Falcon SS10PTU Board and the SS10TPU has been Re-place by the SS12TPU. |
| GSMCB-01 Power Master Main Control Board Circuit Board New Power Master GSMCB01 Ciruit Board Used on Models Used: CSWC 2000 Swing Gate Operator, BSG Sliding Gate Operators, SG 2000 Slide Gate Openers, SGI 2000 Sliding Gate Openers, CSWI 2004 Swing Gate Operators, MSG 2000 Slide Gate Operators. This Power Master Main Control board is found on the large Gate Operators, Most of the Commercial Gate Openers have this Circuit. Look to make sure that you order the correct Board. The GSMCB01 look almost the same as GSMCB02 but the GSMCB01 is for the most part for the commercial units |

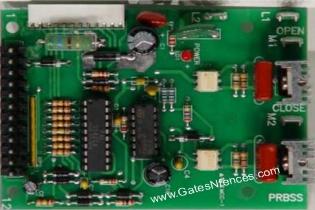

| PRB Board - Power Master | PowerMaster PRB2- PRB3- PRBSS Electronic Circuit Main Control Board: Circuit Board Used On Models: RSW Swinging Gate Operators, MSW Swing Gate Openers, RSG Sliding Gate Operators This Main Circuit Board took the place of the PRB2 and the PRB3 This Electronic Main Circuit Control Gate Board were found in the older Model of Power Master Gate Openers. The PRB3 was re-place in the newer models but now are also discontinued and have been replace by this new board the PBRSS.if your operator is equipt with the PBR2 OR the PBR3 then this board is the one your opener needs. |
| Power Master Electronic Main Control Circuit Board SS7: This Power Master Main Circuit Control Board Model # SS7 OR SS7-C is still available and use in some door products. The SS7-C is for direct motor drive applications (NO CONTACTOR). |

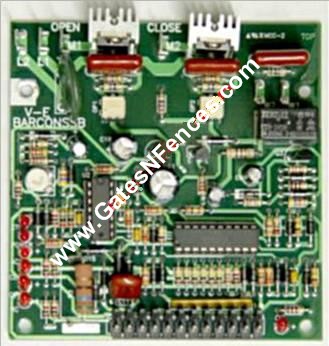

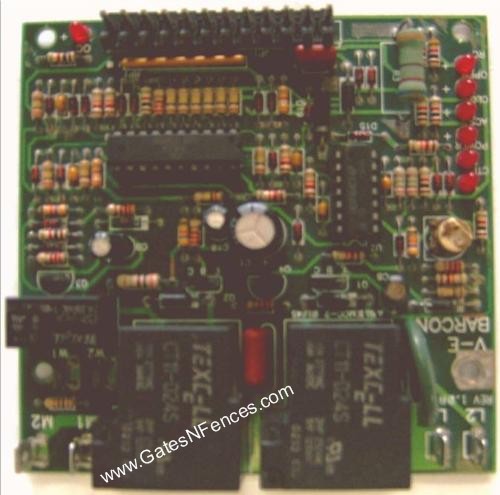

| BARCONI1 Board - Power Master Main Control Board V-E Barcon-1 P1500: Ciruit Board Used on Model: P-1500 SBG (New Style) Single Arm Barrier Gate Operators Power Master Main Control Board this board are use in the P1500 Barrier Gate Openers and the P5000 Gate Operators |
| ACTW3C Board - Falcon Timing Board | Power Master Gate Timer Circuit Board ACT: This Falcon Timer Board is used in conjunction with several of the Power Master Gate Openers Main Control Boards and is uses as a timer. Model # ACTW3C Falcon Board |
Power Master Produces Several Types of Sliding Gate Openers,RSG Residential,
BSG Heavy Residential Light Commercial, SG Heavy Duty Commercial, SGI Super
Heavy Duty Commercial. The PowerMaster line is renowned for its consistent
quality, reliability, and efficiency; while keeping with the latest available
technology in the industry. Together with their distributors, they have supplied
door and gate operators all across North & South America, Europe, and Asia.
BSG Heavy Residential Light Commercial, SG Heavy Duty Commercial, SGI Super
Heavy Duty Commercial. The PowerMaster line is renowned for its consistent
quality, reliability, and efficiency; while keeping with the latest available
technology in the industry. Together with their distributors, they have supplied
door and gate operators all across North & South America, Europe, and Asia.
| Find a Complete List of Power Master (PowerMaster) Circuit Boards for your Power Master Gate Operator. If you are not sure of which control board to purchase, your board doesn't match exactly like the pictures shown, or for availability don't hesitate to contact us. |

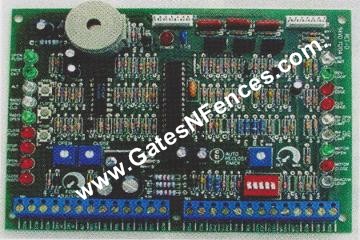

| UMCB01 Power Master (Power Master) Main Control Boards or Main Ciruit Boards. Circuit Board Used on Models: CSG 2400 Sliding Gate Operators, CSG 5900 Slide Gate Operators, SG 2004 Sliding Gate Openers: New Board that is being used on new gate operators. Some built in functions include: Maximum Run Timer , Alarm Mode Operation, Power On Functions, Motor Braking (Plug Stop). and many more functions and optional selection for add ons. |
List of Power Master ( PowerMaster ) PC or Main Ciruit Boards for Gate Operators:
| If you have a SS6 OR SS9 OR SS10 TPU Board this Has Been Replace by the SS12TPU |
| About Us | Contact Us | Our Policies | FAQ | Manufactures | Links | Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp. All rights reserved. No part of this site can be reproduced in any form or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp. 3708 NW 82nd Street Miami Florida 33147, Office: 305-696-0419 Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com |
| Please Scroll Down to View a Table for Gate Opener Boards |
| ||||||||||
| ||||||||||
| ||||||||||
| ||||||||||
| ||||||||||
| ||||||||||
| ||||||||||
| ||||||||||
| GSMCB-02 Power Master ( PowerMaster ) GSMCB02 Main Electronic Control Board: Ciruit Board Used On Models: MBG Arm Barrier , RSW Swing Gate Operators, MSW Swing Gate Openers, RSG 2000 Sliding Gate Openers This is for the Gate Opener Power Master the new model. Model # of this Circuit Board is GSMCB02 a much larger board than previous boards and also UL approved. For the SG Heavy commercial units the model # GSMCB01 was used, make sure to match model # |
| ||||||||||
|
