BFT is one of Italy's leading gate operator specialists, with 15 years of experience in automatic
gate technology. The product portfolio includes a wide range of gate operator products
suitable for Domestic, Commercial and Industrial applications. Providing a comprehensive
range of imported gate operator equipment for both residential and commercial gates. For new
gates or existing gates. For large gates and small gates, for gates that open inwards or
outwards, for large or small columns and Barriers.
gate technology. The product portfolio includes a wide range of gate operator products
suitable for Domestic, Commercial and Industrial applications. Providing a comprehensive
range of imported gate operator equipment for both residential and commercial gates. For new
gates or existing gates. For large gates and small gates, for gates that open inwards or
outwards, for large or small columns and Barriers.
|

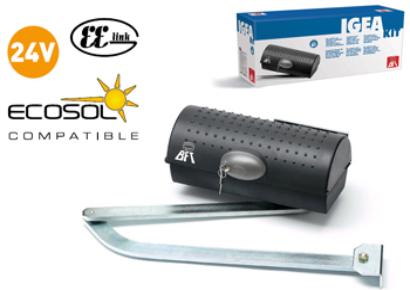

| A MODEL FOR EVERY NEED •Great versatility thanks to the levers that permit installation on large sized pillars, opening up to 125°. Maximum offset 12” (30 cm). SMART TECHNOLOGY •Control unit compatible with the EELink protocol. SAFE USE •This version powered at 24V is specially designed for simpler and faster installation in compliance with latest safety standards. •Thanks to the antisquashing system, the operator reverses motion and prevents damage to people and vehicles in the event of contact. SIMPLER INSTALLATION •BFT’s system of coded limit switches makes it possible to reduce the complexity of wiring the low-voltage motors: a single wire is carried to the control panel instead of the three or five normally required, thereby increasing the simplicity and speed of installation. Furthermore, the system is able to automatically distinguish between the open limit switch and the closed one and hence prevent wasted time and wiring errors. • 24V DC and 120V AC electromechanical operators for residential use for gate up to 550Lbs and 10Ft. • Incorporated electrical limit switches; Electronic obstruction detection device from the control panel. • Adjustable slow-down on opening and closing. • Opening up to 125 Degrees in 15 seconds. Details: This controller is suitable for residential use and has been designed for swing gates with particularly large gate posts. The drive arm, built with a special anti-shearing shape, allows the leaves to be moved when the controller is considerably out of place with respect to the fulcrum of the leaves. The non-reversible electro-mechanical gearmotor maintains the stop during closing and opening. The release knob with personalised key, fitted outside each operator, makes manual manoeuvre extremely easy. BFT IGEA is a great electromechanical motor for automating the swing gate with a leaf of up to 2,5 m in length and weighting up to 250 kg. it can be mounted on pillars of the big dimensions (even 30 cm) and opening up to 125°. The anti-crushing protection system automatically inverts motions preventing damage to people and property in case of detecting any obstacle. The system of coded limit switches reduces the complexity of wiring, increasing the simplicity and speed of installation. There is just a single wire carried to the control board instead of three. What’s more, the system is able to automatically discern the difference between the open and closed limit switch, which save the time and wiring errors. It is available in two voltage versions: 230V and 24V. the control board is compatible with the EElink protocol. |
| Model | Kit | Voltage | Leaf Weight | Leaf Length |
| P935070 00002 IGEA BT | 24 V |
up to 550 lb (250 kg) | up to 10' (3 m) | |
| R935229 00003 IGEA BT KIT 1 OPERATOR | x |
24 V |
up to 550 lb (250 kg) | up to 10' (3 m) |
| R935229 00004 IGEA BT KIT 2 OPERATORS | x |
24 V |
up to 550 lb (250 kg) | up to 10' (3 m) |
Technical Features
| Control panel | LIBRA UL R |
| Reversible/irreversible operator | irreversible |
| Power supply | 120 V 60 Hz single-phase |
| Absorbed power | 0.05 hp (40 W) |
| Thermal protection | integrated |
| Opening and Closing Time | 15 s |
| Impact Reaction | torque limiter integrated in the control panel |
| Lock | mechanical opening/closing |
| Manual Release | release knob with personalised key |
| Operating cycle | intensive use |
| Environmental conditions | from 5°F (-15°C) to 140°F (+60°C) |
| Degree of protection | IP44 |
| Operator weight | 35 lbs (~16 kg) |
| Dimensions | see below |
| Fuse value libra board transformer | 2A T |
| Fuse value libra board logic board | 1A T |
| The kit contains: - 1 x BFT BT Igea motor - 1 x BFT LIBRA C MA control unit (incl. radio receiver) - 1 Pair of BFT CELLULA 130 photocells - 2 x BFT MITTO 2 remote - 1 x External antenna - Use manual |
