BFT is one of Italy's leading gate operator specialists, with 15 years of experience in automatic
gate technology. The product portfolio includes a wide range of gate operator products
suitable for Domestic, Commercial and Industrial applications. Providing a comprehensive
range of imported gate operator equipment for both residential and commercial gates. For new
gates or existing gates. For large gates and small gates, for gates that open inwards or
outwards, for large or small columns and Barriers.
P930003 00002 E5 120 V  up to 440 lb (200 kg) up
to 6’ 6’’ (2 m)
P123001 00019 -- EBP 24 120/24 V -- 120/24 Vac
gravity electric lock.
N733008 - BLE 5 -- Complete extended arm.
Cut Sheet
Manual
Electromechanical Operator For Swing Gates


A MODEL FOR EVERY NEED

•Multiple installation possibilities thanks to the optional
articulated arms (BLE5 or BSE5) which allow the use of the
operator on a pillar or in very tight spaces
SAFE USE
•Crushing prevention guaranteed by the adjustable mechanical
clutch

GENERAL OUTLINE
The E5 model consists of a compact electromechanical
gearmotor with
minimum overall dimensions which can be installed on any post
or pillar
thanks to its versatility. Gate locking in the closing position is
guaranteed
by an electric lock. The reversibility of the gearmotor allows
immediate
manual manoeuvring of the gate in case of emergency, by means
of the
appropriate personalised key releasing the electric lock. Total
anti-squash
safety is provided by a multiple-disk clutch and the end-of-stroke
operation
is set by a timer.

Technical Features

Control panel RIGEL 4 UL/CSA (suggested)
Reversible/irreversible operator reversible
Power supply 120 V 60 Hz single-phase
Absorbed power 0.3 hp (200 W)
Thermal protection integrated
Opening and Closing Time 22 s
Impact Reaction mechanical clutch
Lock electric lock
Manual Release reversible operator
Operating cycle semi intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP44
Operator weight 17 lb (~8 kg)
Dimensions see below

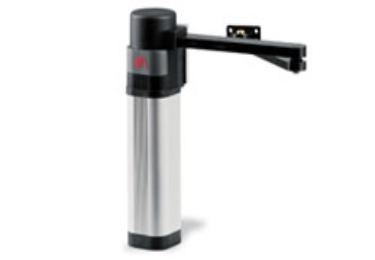

BFT E5 Cylinder style gate opener for a better looking installation

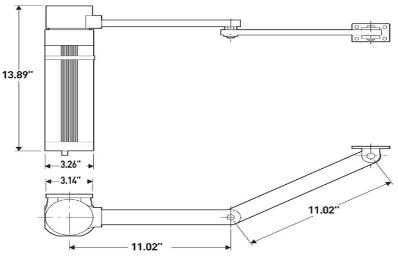

BFT E5 Sketch Diagram Layout
