Welcome to: GATESNFENCES.COM

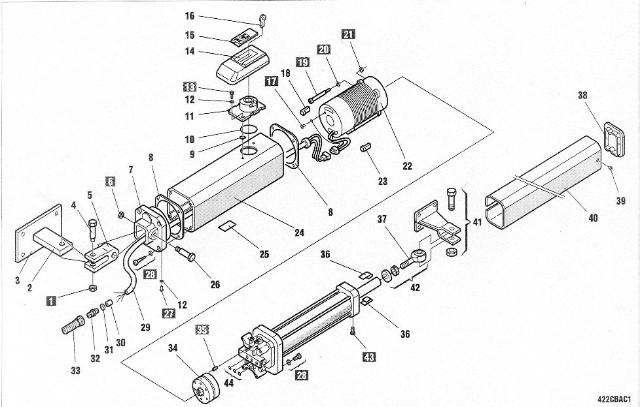

FAAC Gate Operators 422 - Scroll Down to View Exploded Parts View & Parts list for 422
Including Locking Cap -- Click on the image to enlarge
FAAC Replacement Parts for your FAAC Operators - We Offer
FAAC Factory Direct replacement parts and New Products for
FAAC Systems
Keypads & Telephone Entry Systems
Gate Operator Circuit Boards
Remote Controls
Loop Detectors & Safety Equipment
Receivers
About Us  |   Contact Us   |   Our Policies   |   FAQ   |   Manufactures   |   Links   |
Copyright Protected 2004-2008 - L. A. Ornamental & Rack Corp.  All rights reserved. No part of this site can be reproduced in any form
or by any means, electronic, mechanical, photocopying, or otherwise without prior written consent of L. A. Ornamental & Rack Corp.
3708 NW 82nd Street  Miami  Florida  33147, Office: 305-696-0419  Fax: 305-696-0461 E-Mail: LAOrnamental@Aol.com
POS PART NO. DESCRIPTION
1 2036 Galvanized Nut (8mm)
2 7220015 Rear Bracket
3 7284005 Rear Bracket Plate
4 7182075 Short Pin
5 7221115 Rear Fork
6 2037 Self-Locking Nut (8mm)
7 7170595 Rear Flange
8 7099101 Gasket (D80)
9 7090440 O-Ring Locking Cap (Small)
10 7090655 O-Ring Locking Cap (Center)
11 41850215 Locking Cap
12 7094065 Gasket (copper)
13 2274 Vent Screw (4x6mm)
14 7270805 Locking Cap Cover
15 7270815 Access Slide (Locking Cap)
16 7131005 Viro Key (Manual Release)
17 N/A Self Threading Screw
18 7119475 Vibration Dampener
19 2365 Motor Bolt (4X50mm)
20 2366 Lock Washer
21 2367 Hex Nut (4mm)
22** 77000425 115V 1400 RPM Motor
23 7119485 Vibration Dampener
24 309005 Operator Body
25 N/A Vent Screw Label
26 7182175 Long Pin
27 2274 Vent Screw
28 N/A Torx (Self Threading) T20
29 7514055 Electric Power Cord
30* 2581 Fiber Washer
31* 7039305 Strain Relief Brass Washer
32* 7109155 Strain Relief Nut
33* 7109145 Strain Relief
34 3204395 1Lt Lobe Pump
35 N/A Pump Pin
36 760285 Spacers (Protective Cover)
37 4900605 Swivel Joint
38 7271545 Protective Cover End Cap
39 7114025 Protective Cover Plug
40 7272125 Protective Cover
41 7220515 Front Mounting Bracket
42 4900605 Swivel Joint Kit
POS. P/N DESCRIPTION
01 701307 SCREW 4X8 STAINLESS STEEL
02 7290445 RELEASE KNOB
03 701526 TORX 4X10 STAINLESS STEEL
04 720344 TOP COVER
05 729043 LOCK LEVER
06 7090895 21x2 O-RING
07 7275285 TOP COVER
08 7131005 KEY
09 7275275 CAP FOR LOCK
POS. P/N DESCRIPTION
10 7090855 O-RING 33.05X1.78
11 722795 BASE SUPPORT FOR RELEASE
12 7090865 O-RING 41X1.78
13 718358 BY-PASS EXTENSIONS
14 718359 ACTIVATION EXTENSIONS
15 7090845 O-RING 4X2.5
16 490327 KIT BY-PASS EXTENSIONS
17 490326 KIT RELEASE
18 4185045 LOCKING CAP ASSEMBLY
Locking Cap

<    ;       ;       ;       ;       ;       ;       ;       ;       ;       ;       ;       ;       ;       ;       ;       ;   >

Item Description Part Number Price
1 Galvanized Nut (8mm) 2036
2 Rear Bracket 7220015 Our Price: $33.00
3 Rear Bracket Plate 7284005 Our Price: $17.00
4 Short Pin 7182075 Our Price: $12.00
5 Rear Fork 7228015 Our Price: $35.00
6 Self-Locking Nut (8 mm) 2037
7 Rear Flange 7170685 Our Price: $48.00
8 Gasket (D80) 70991015 Our Price: $4.00
9 O-Ring Locking Cap (Small) 7090440015 Our Price: $2.00
10 O-Ring Locking Cap (Center) 7090655 Our Price: $3.00
11 Locking Cap 41850215 Our Price: $46.50
12 Gasket (Copper) 7094065 Our Price: $2.00
13 Vent Screw (4x6 mm) 2274
14 Locking Cap Cover 7270805 Our Price: $18.00
15 Access Slide (Locking Cap) 7270815 Our Price: $7.00
16 Viro Key (Manual Release) 7131005 Our Price: $4.00
17 Self Threading Screw (4mm) N/A
18 Vibration Dampener 7119475 Our Price: $3.00
19 Motor Bolt (4x50 mm) 2365
20 Lock Washer 2366
21 Hex Nut (4 mm) 2367
22** 115V 1400 RPM Motor 77000425 Our Price: $131.25
23 Vibration Dampener 7119485 Our Price: $3.00
24 Operator Body 309005 Our Price: $57.00
25 Vent Screw Label N/A
26 Long Pin 7182175 Our Price: $13.00
27 Vent Screw (4x6 mm) 2274
28 Socket Head Screw (5x20 mm) N/A
29 Electric Power Cord 751405
30* Fiber Washer 2581
31* Strain Relief Brass Washer 7039305 Our Price: $3.00
32* Strain Relief Nut 7109235
33* Strain Relief 7109235 Our Price: $18.00
34 1 Lt. Lobe Pump 3204425 Our Price: $124.50
35 Pump Pin N/A
36 Spacers (Protective Cover) N/A
37 Swivel Joint 4900605 Our Price: $44.00
38 Protective Cover End Cap 7271545 Our Price: $4.00
39 Protective Cover Plug 7114025 Our Price: $2.00
40 Protective Cover 7272125 Our Price: $49.50
41 Front Mounting Bracket 7220515 Our Price: $17.00
42 Swivel Joint Kit 4900605
43 Self Threading Screw N/A
1
Item Description Part Number Price
1 Knob Screw (SS) 4mm x 8mm 2151
2 Manual Release Knob 7290445 Our Price: $9.00
3 Screw (SS) 4mm x 10mm N/A
4 Locking Cap Base N/A
5 Lock N/A
6 O-Ring (Lock Cylinder) 7090290015 Our Price: $2.00
7 Top N/A
8 Key (Viro) 7131005
9 Cover, Key 7275275 Our Price: $3.00
10 O-Ring (Base to Body) 7090855 Our Price: $2.00
11 Extension Receptacle N/A
12 O-Ring Extension Receptacle 7090865 Our Price: $2.00
13 By-Pass Extensions N/A
14 Manual Release Extension N/A
15 O-Ring, Extensions 7090845 Our Price: $3.00
16 Extensions with O-Rings 490327 Our Price: $27.00
17 Manual Release Kit 490326 Our Price: $33.00
18 Locking Cap Complete 4185045 Our Price: $41.00
19 Locking Cap with Manual Release System 490325 Our Price: $45.75
24 Operator Body (New) 7161815 Our Price: $46.50
